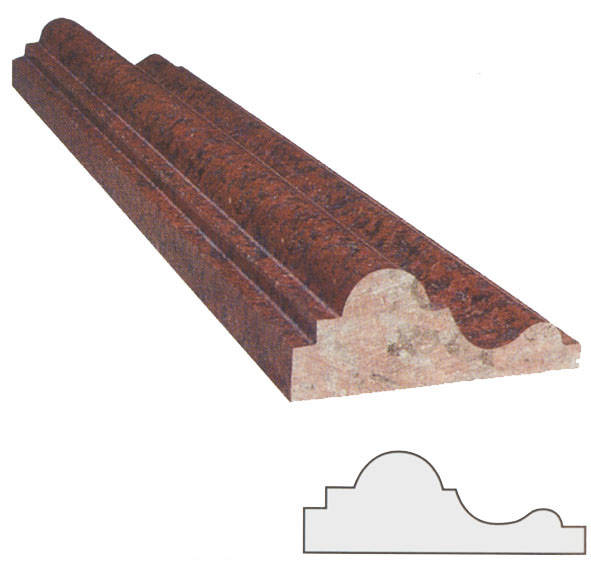

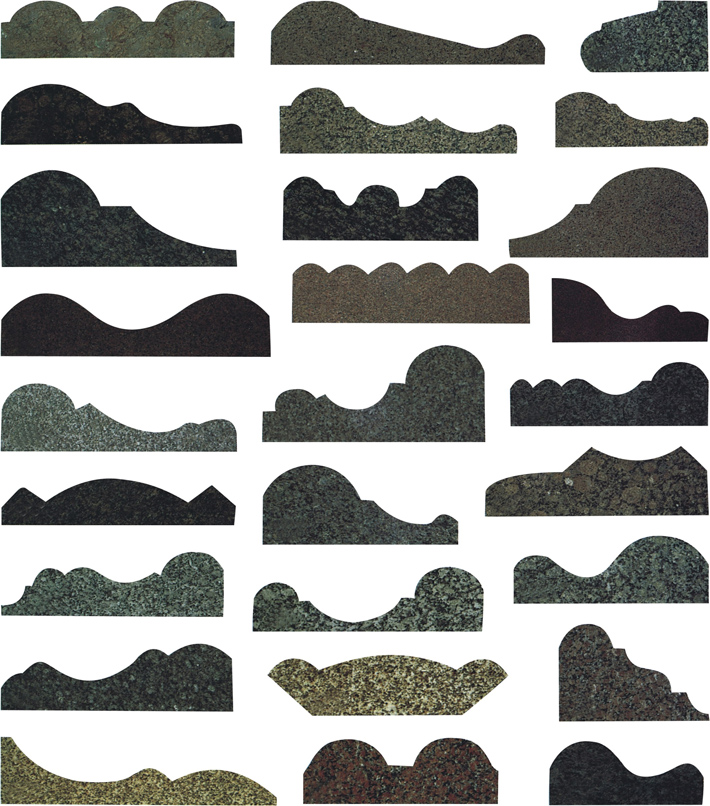

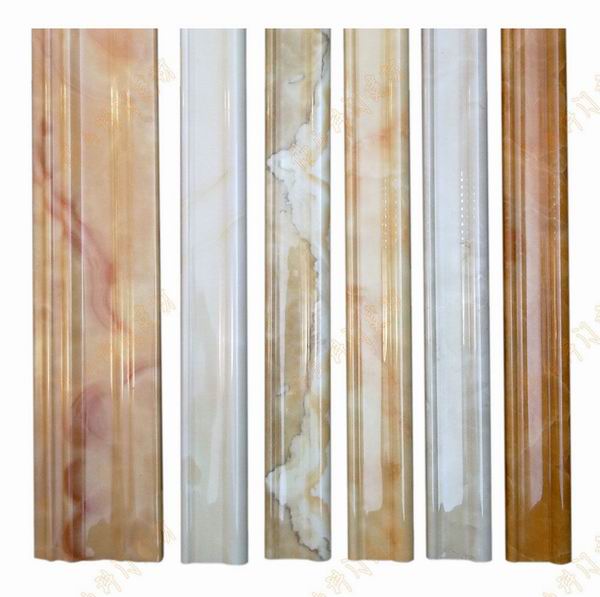

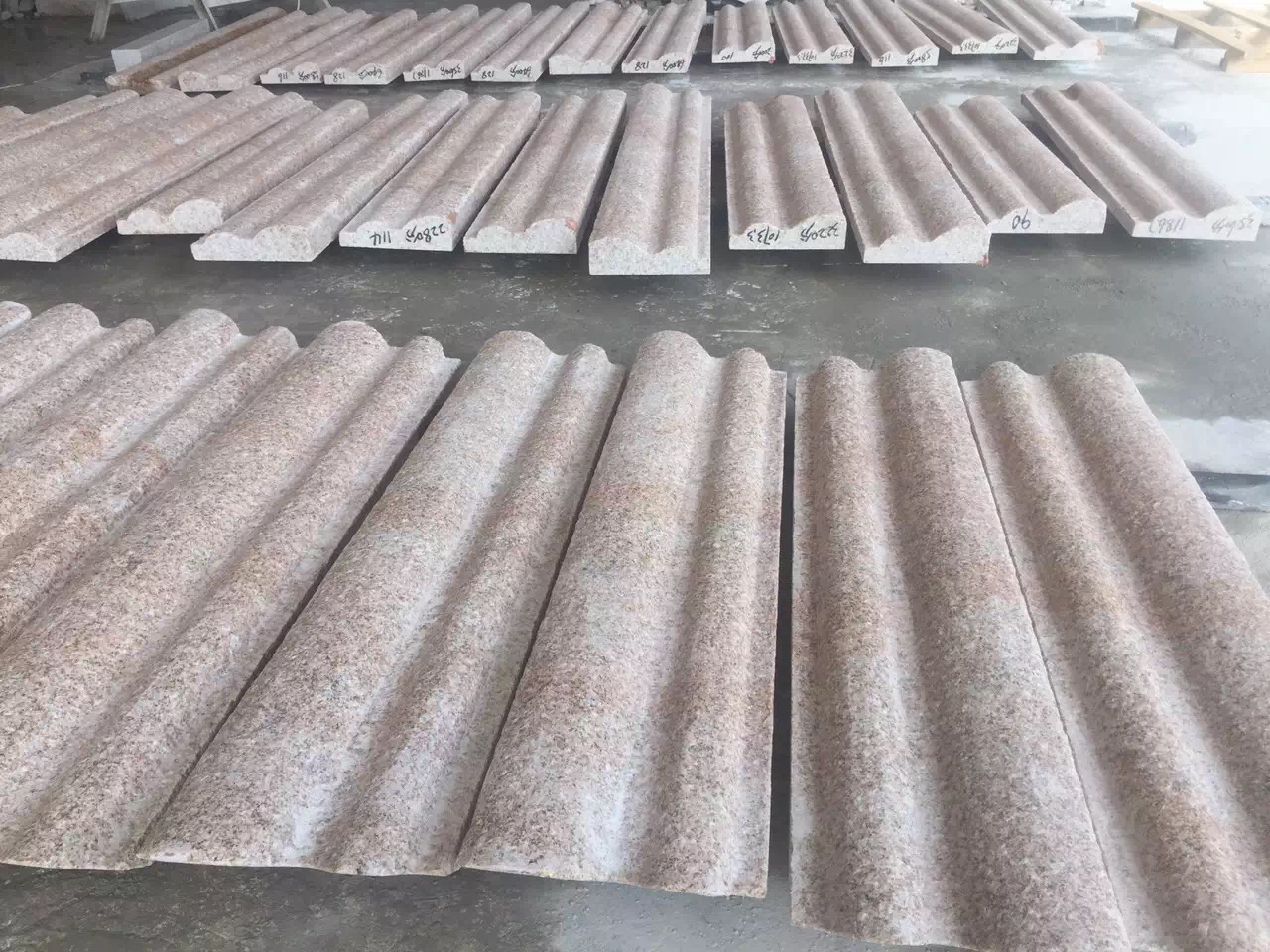

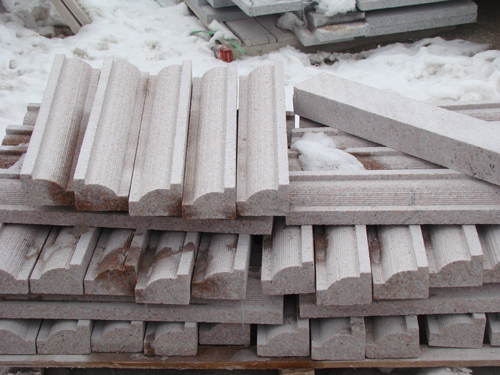

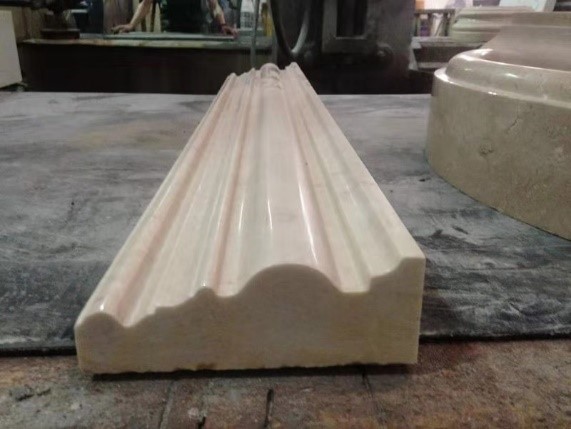

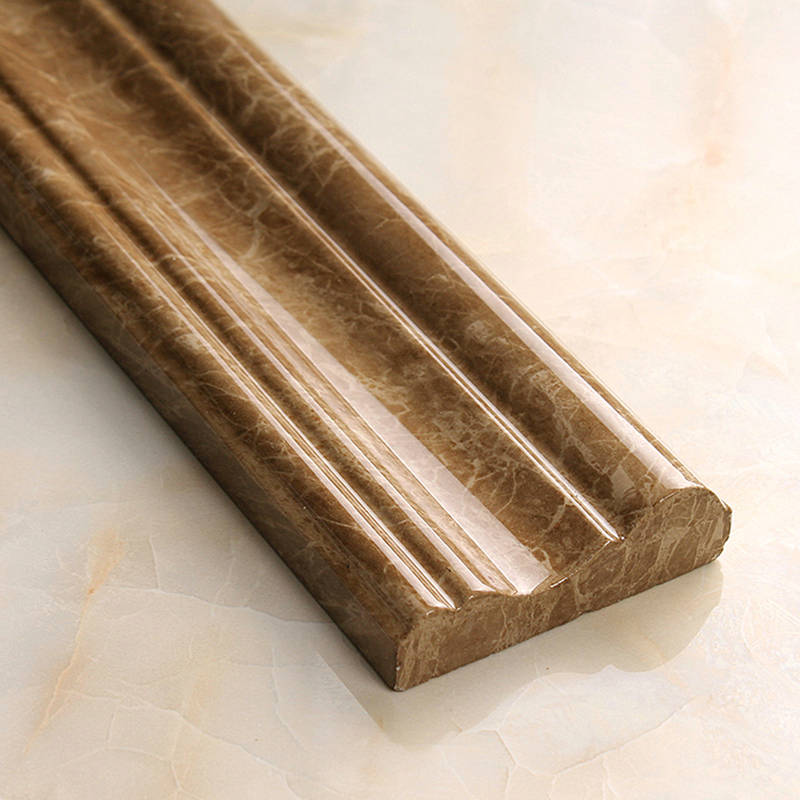

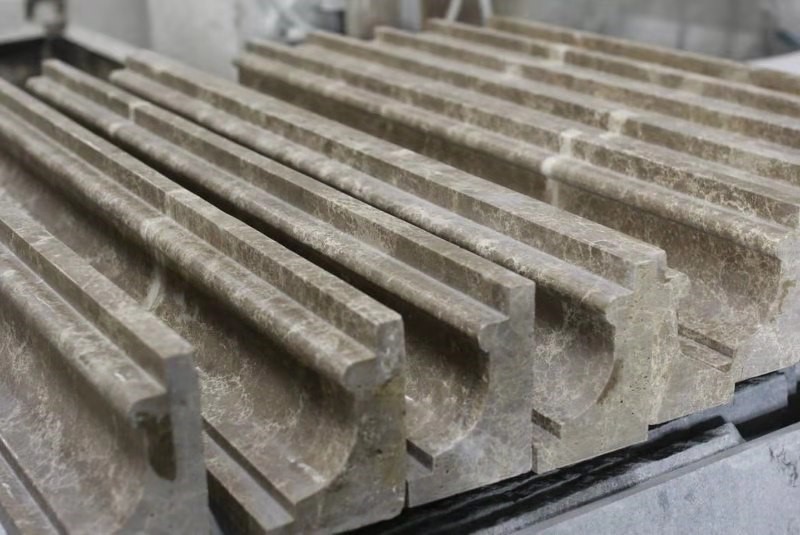

It has computer profiling lines. It automatically track model of (straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with (straight) line and craft products, uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. This machine has CNC / PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines etc.
Blade Dia. | Ø300 – Ø600 MM |
Max. Vertical Lifting Travel Of Cutting Frame | 700 MM |
Trolley Size | 3500 x 1400 MM |
Main Motor | 20 HP |
Overall Dimension | 6000 x 2400 x 1800 MM |
Gross Weight | 5000 Kg |
Gross Power | 24 HP |
Water Consumption | 6 M3 / H |
Heavy Duty , Exclusive Machine With Local Service Support And Tools Support | |

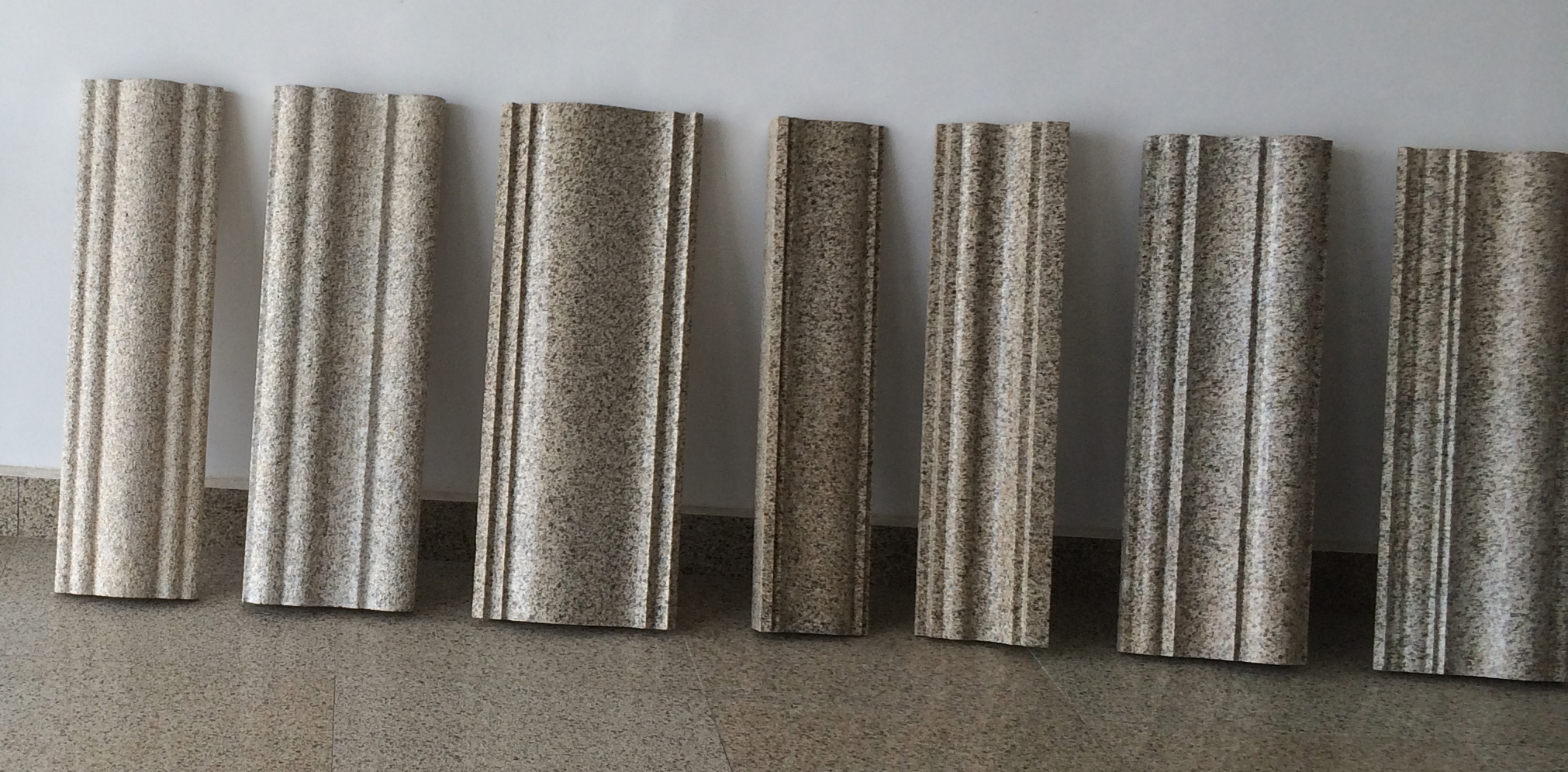

It has computer profiling lines. It automatically track model of (straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with (straight) line and craft products, uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. This machine has CNC / PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, etc.
Blade Dia. | Ø300 – Ø600 MM |
Max. Vertical Lifting Travel Of Cutting Frame | 900 MM |
Trolley Size | 3500 x 1800 MM |
Main Motor | 20 HP |
Overall Dimension | 6200 x 3800 x 3200 MM |
Gross Weight | 6800 Kg |
Gross Power | 30 HP |
Water Consumption | 6 M3 / H |
Heavy Duty , Exclusive Machine With Local Service Support And Tools Support | |
