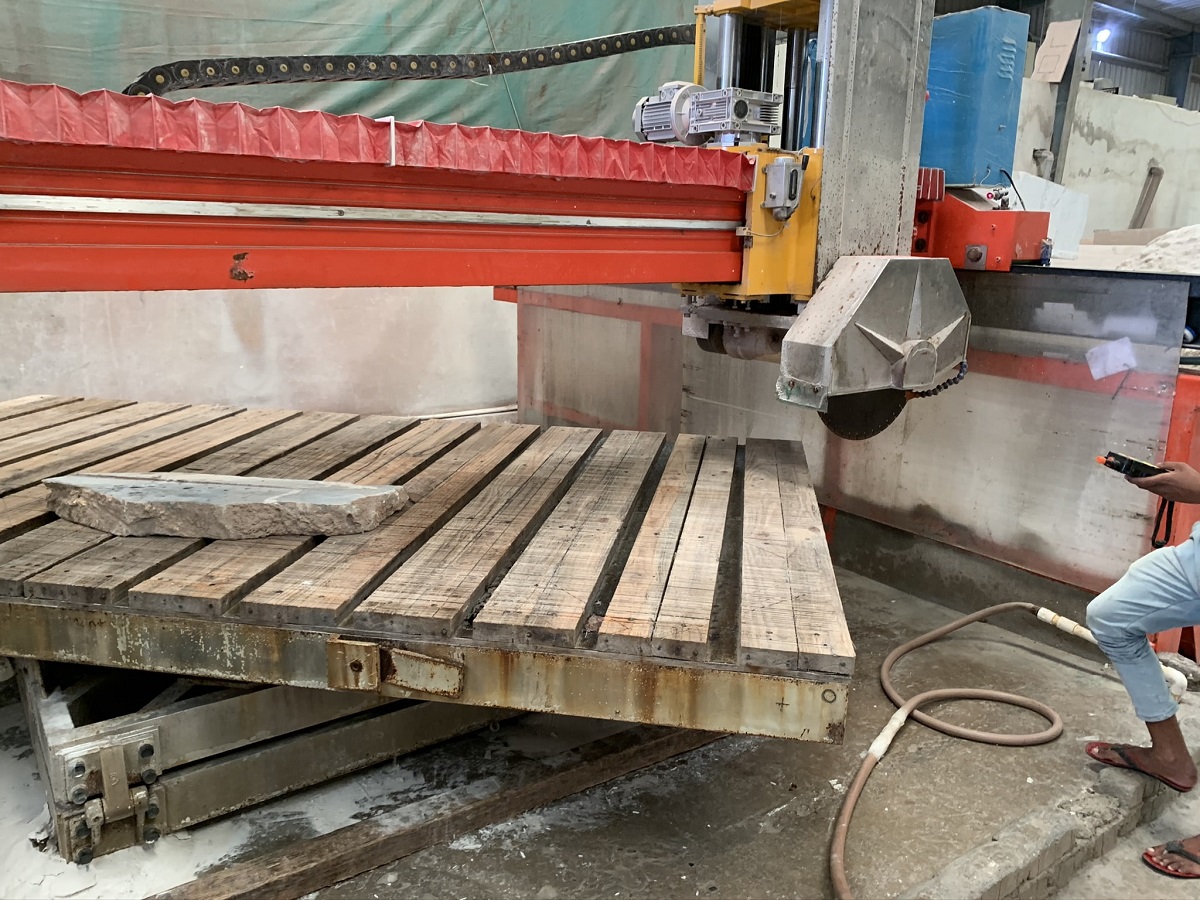

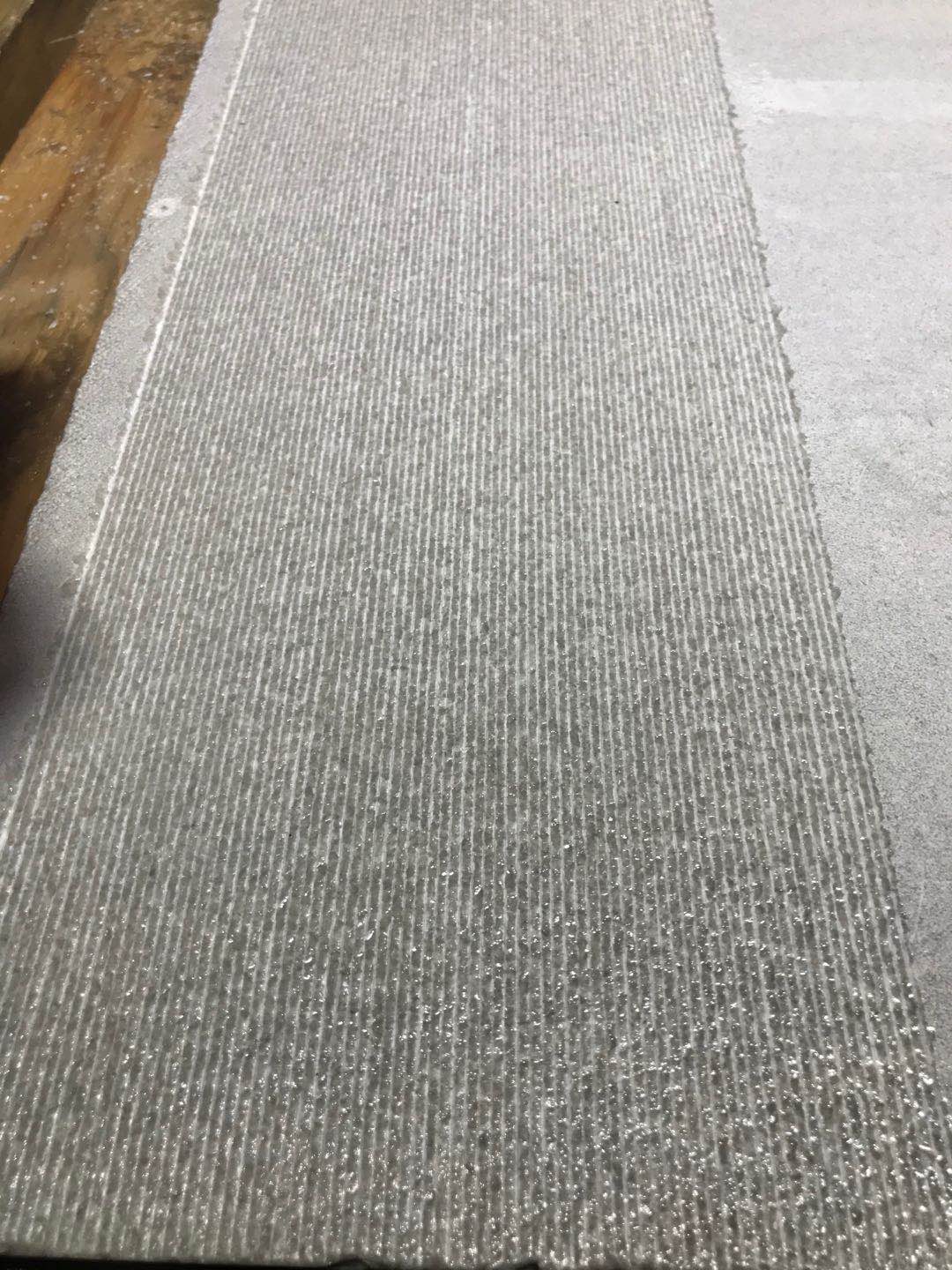

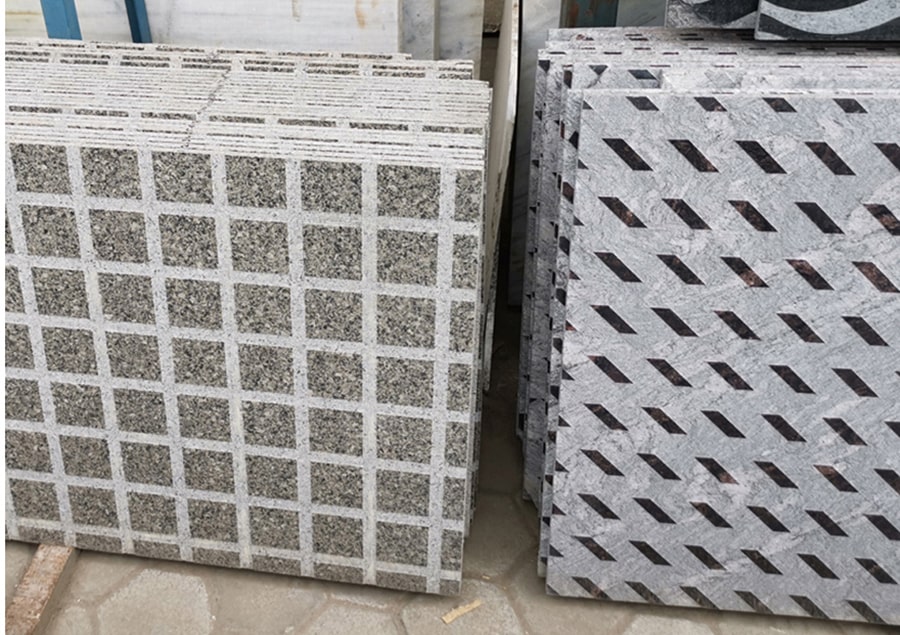

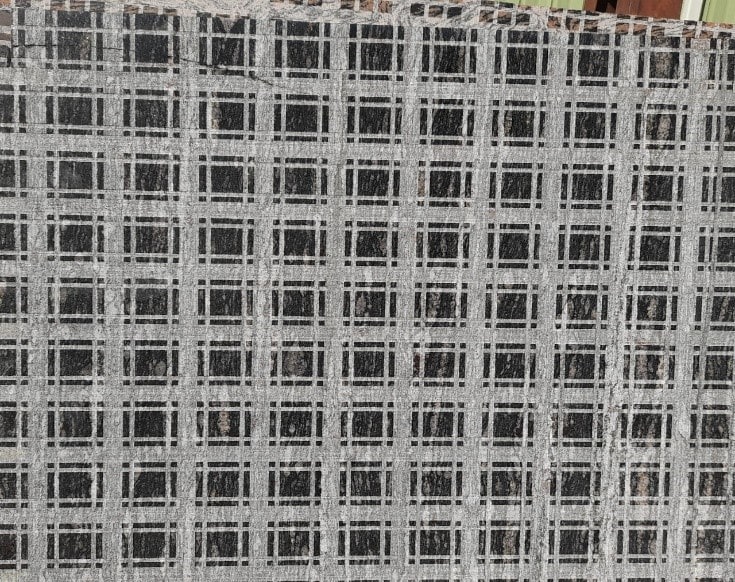

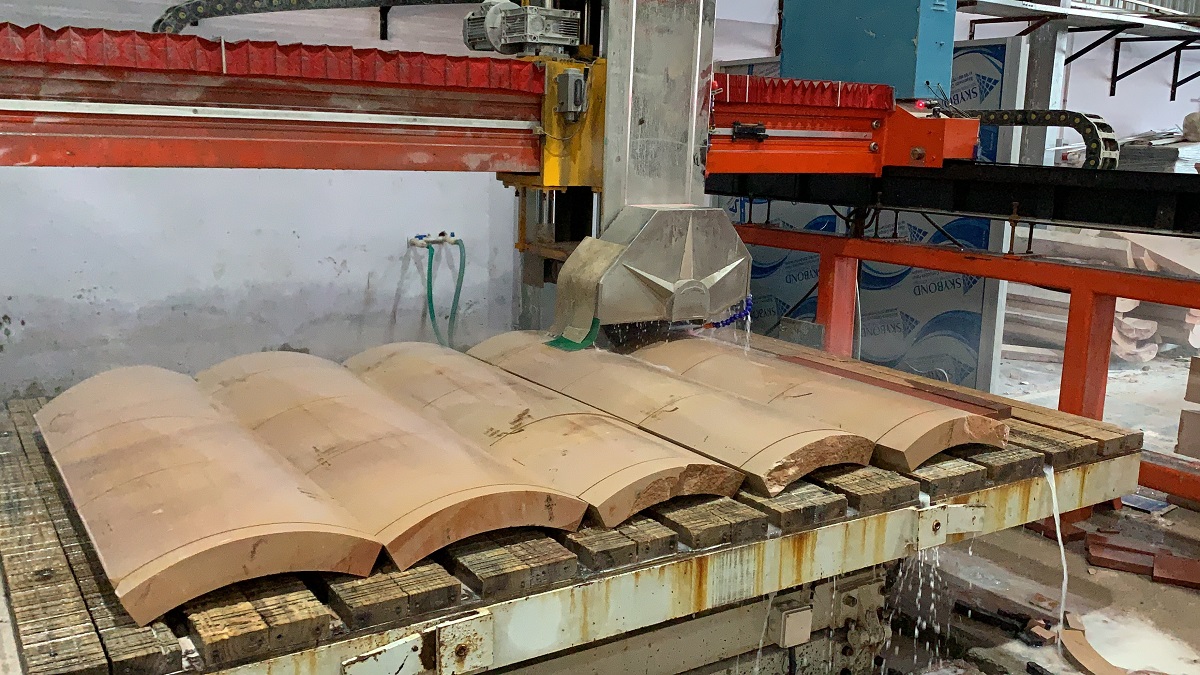

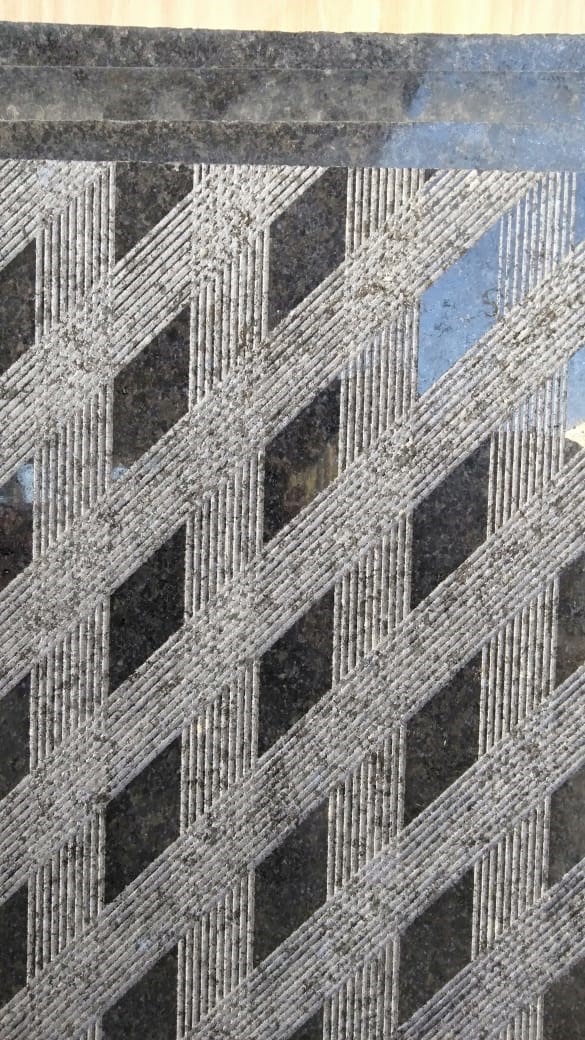

This machine is control by PLC, worktable can be 360° rotating and tilting 85°. THIS MACHINE IS MULTIBLADE BRIDGE SAW – It can adopt 1 – 10 pcs of the saw blades can also be put with spacers , it can adopt the different profile blades width upto 150 mm so it can make many kinds of profiles & patterns on the slab . Its precised manufacturing makes its cutting with high accuracy, high stability. And it’s easy operation with lowest maintenance rate. It’s suitable for processing high value and big size stones.
Dia. Of Blade | Ø400 – Ø600 |
Dimension Of Worktable | 3500 x 2000 MM |
No. Of Blade | 1 – 10 Pcs |
Worktable Rotating Degree | 0 – 360° |
Worktable Tilting Degree | 0 – 85° |
Motor Of X Axis | 3 HP |
Motor Of Y Axis | 2 HP |
Motor Of Z Axis | 2 HP |
Main Motor | 25 HP |
Gross Power | 32 HP |
Overall Dimension | 6400 x 5900 x 2900 |
Parameters | Unit | TURBO – 625 |
Blade Stroke | Mm | 3500 |
Blade Vertical Stroke | Mm | 360 |
Blade Dia. | Mm | Ø 400 – Ø625 |
Cutting Depth | Mm | 180 |
Dimension Of Table | Kw/hp | 3200 x 2000 |
Blade Motor | m/min | 15/20 |
Adjustable Cutting Speed | Kg | 0-12 |
Dimension | Mm | 5600 x 3304 x 3028 |

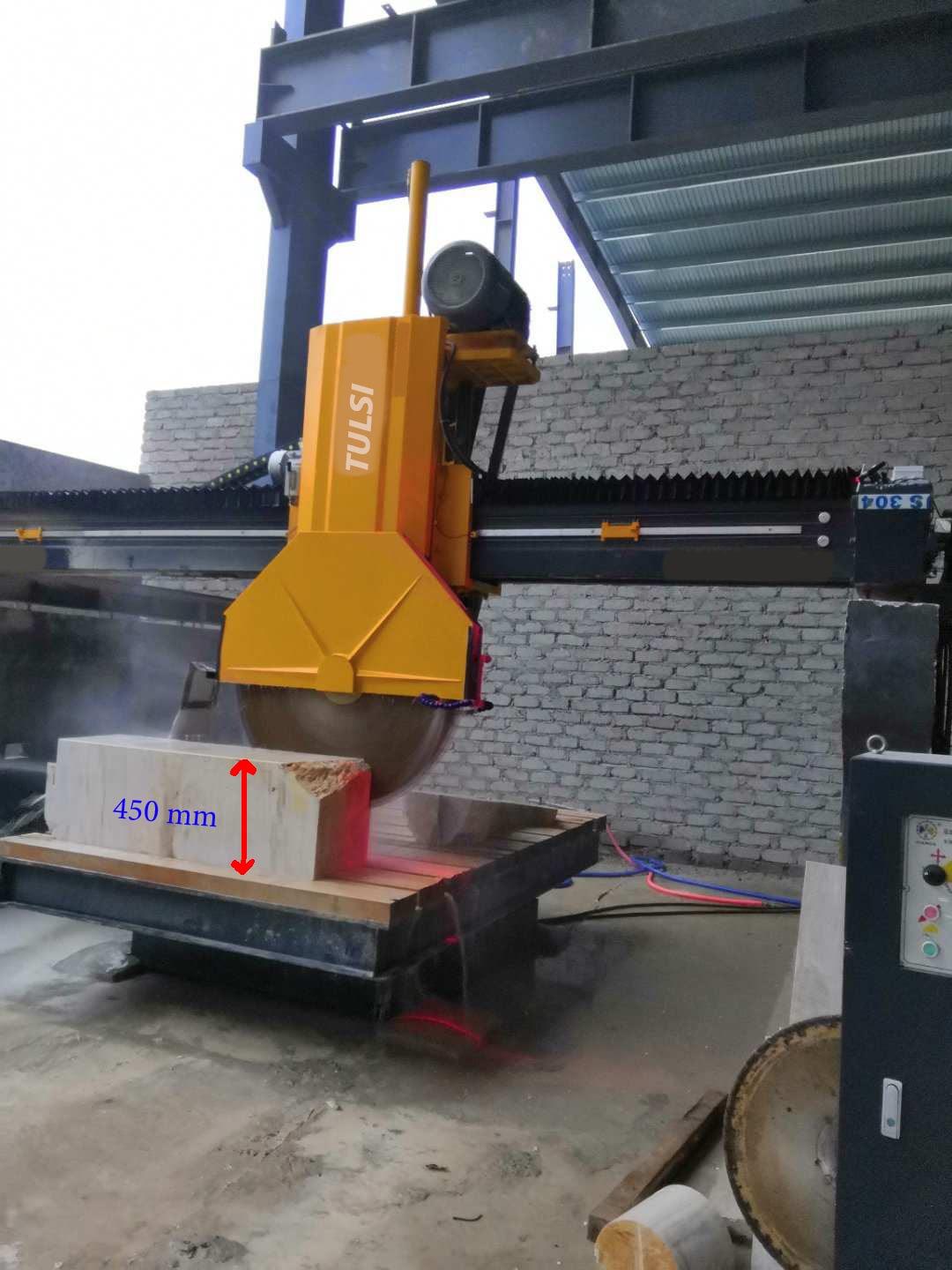

Parameters | Unit | TURBO – 1200 |
Blade Dia. | mm | Ф 600 – ф 1200 |
Max. Processing Size ( L * W * H ) | mm | 3200 * 2000 * 450 |
Dimension Of Worktable ( L * W ) | mm | 3200 * 2000 |
Max. lifting Stroke | mm | 760 |
Worktable Rotating Degree | ° | 90°/ 360° |
Main Motor | kw | 22 |
Gross Motor | kw | 29 |
Water Consumption | M3/h | 6 |
Dimension ( L * W * H ) | mm | 6400 * 4800 * 4400 |
